Camera Remote Control MCU-100/200 Connection with AD1 Over Fiber Extender to 10Km SMF or 500 Meters MMF (BY-MCUAD1-724SF(Over 1 Singlemode Fiber))

BY-MCUAD1-724 helps control up to 4K video cameras remotely using the MCU-100/200, Multi-Camera Controller over 10+Km Single-mode Fiber between the cameras and the MCU-100/200 using the included AD-1 Adapters. Specs Fiber Optical Wavelength: 1310/1550nm or 1310nm Output Power: -10~-3dBm Optical fiber: Single mode Fiber or Multimode Fiber Rx sensitivity: <-18dBm Optical connector: 1 x LC or 2 x LC optional Distance: 0~10KM (SMF Default) or 500 Meters (MMF) Remote Signal Connector : RJ45 Connector Standard: Support DATAVIDEO Remote protocol Number of Transmitter Channel: 1-Ch RJ45 input, Connect AD1 Number of Receiver Channel: 1-Ch RJ45 output, Connect MCU-100S or MCU200S General index Power supply: DC 5~12V Power consumption <5 W Enclosure Small Size: 108 x 22 x 52 mm Net weight: 450g /pair (with Power supply) Case Material: Aluminum Alloy Work Temp: -20°C to 55°C Storage Temp: -20°C to 70 °C humidity: 0 ~ 95% (non-condensing) Package Includes: 1) 1 x Transmitter with SFP module at MCU side 2) 1 x Receiver with SFP module at AD1 side 3) 2 x Power Supply Adapters 4) 1 x RJ-45 Line

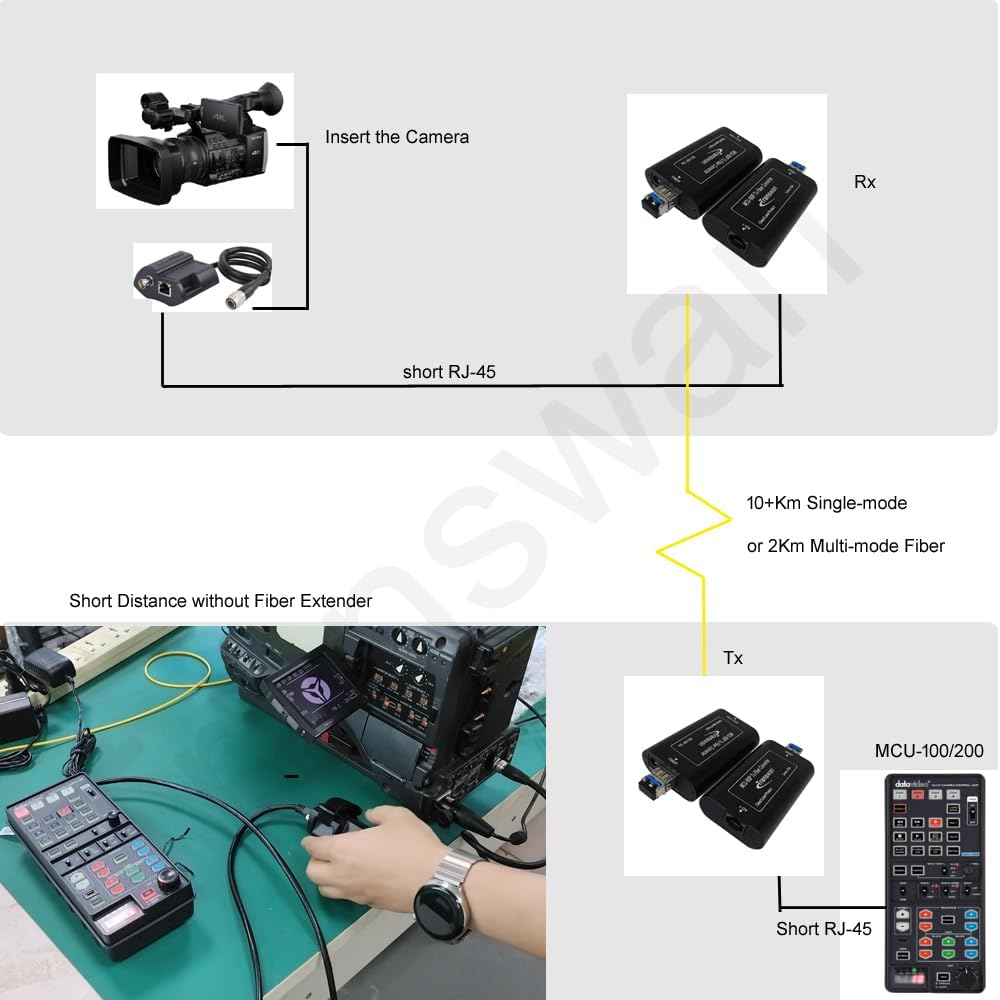

• Extending the Connection Between MCU-100/200 and AD1 over Fiber Extender to 10Km SMF or 500 Meters MMF
• Plug & Play, NO Software
• Mini-Size for Easy Installment; with Hot-pluggable Small SFP
